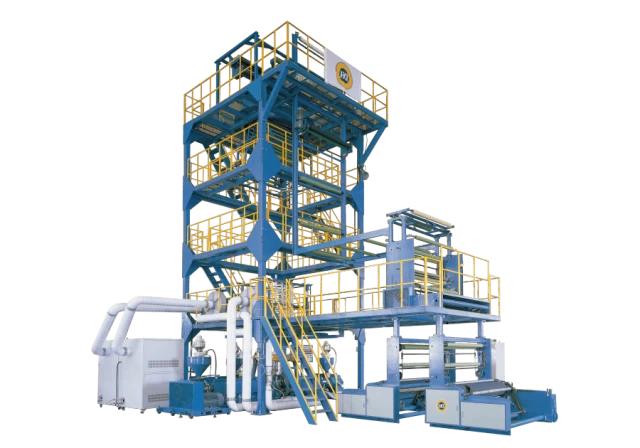

A/B/C 3-layer Blown Film Machine
For printing film and packaging film
Film width: 1200 mm
Production output: 300 kg/hr
Specification
| Machine Model | FK/BFS-65/70/65-1400-TS |
|---|---|
| Resin | LDPE / LLDPE |
| Layer Structure | A / B / C |
| Layer Ratio | 20-25% / 50-60% / 20-25% |
| A&B&C Layer |
HDPE: 0.05-0.007 LDPE: 0.8-3.0 LLDPE: 1.0-2.0 |
| Film Size | 900-1300 mm (Max.) |
| Film Thickness | 35-100 micron |
| Extruder | Ø65/70/65 mm., L/D=28 |
| Main Drive |
60/200/60 HP AC motor with vector inverter control |
| Extrusion Output | 500 kg/hr |
| Production Output | 350-400 kg/hr |
| Line Speed | 30-80 M/min |
| Extruding Die Size | Ø300 mm |
| Tower Height | 12000 mm |
| Haul off Unit | Ø215 x W3250 mm |
| Winder | back to back station / auto surface friction type / film cutting by air knife |
*AII specifications, design and characteristics shown above are object to change without prior notice. meter
