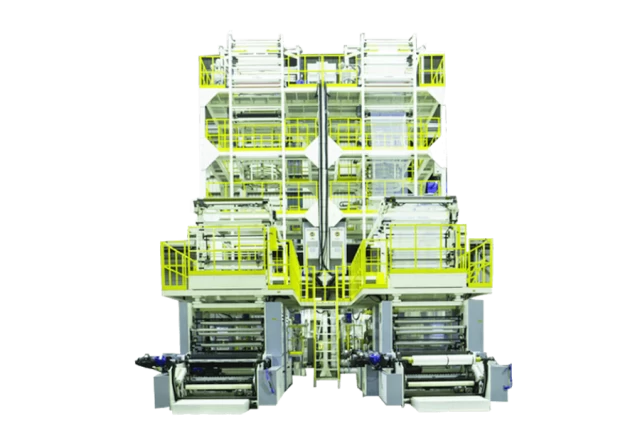

A/B/C BFS Series Co-Extrusion Blown Film Line
- Custom Designed Co Extrusion Blown Film Line
- Tubular lay flat width:From 40mm to 7 meter.
MONO LAYER, TWO LAYER, THREE LAYER & FIVE LAYER
SINGLE COLOR, DOUBLE COLOR, UP TO 4 COLOR.
Specification
| Machine Model | FK/BFS-65/70/65-1400-TS |
|---|---|
| Resin | LDPE / LLDPE |
| Layer Structure | A / B / C |
| Layer Ratio | 20-25% / 50-60% / 20-25% |
| Film Size | 1300 mm (Max.) |
| Film Thickness | 35-100 micron |
| Extruder | Ø65/70/65 mm, L/D=28 |
| Main Drive | 60/100/60 HP AC motor with vector inverter |
| Extrusion output | 500 kg/hr |
| Line speed | 30-80 M/min |
| Extruding Die Size | Ø300 mm |
| Tower height | 180 Meter |
| Haul Off Unit | with nip roller 3250 mm width |
| Winder | back to back station / surface friction type / film coating by air knife |
| Air Ring & Thickness Control | Octagon brand |
*AII specifications, design and characteristics shown above are object to change without prior notice.
