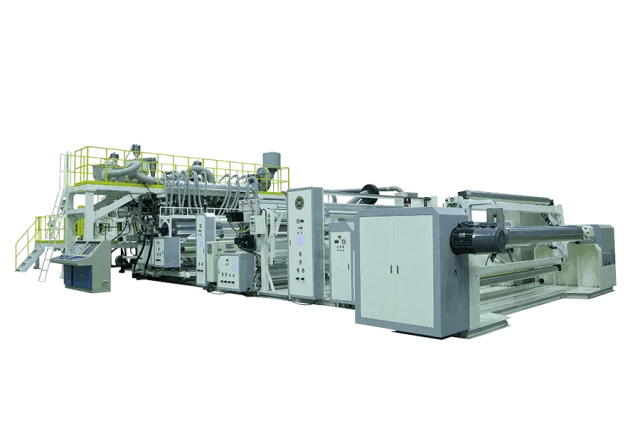

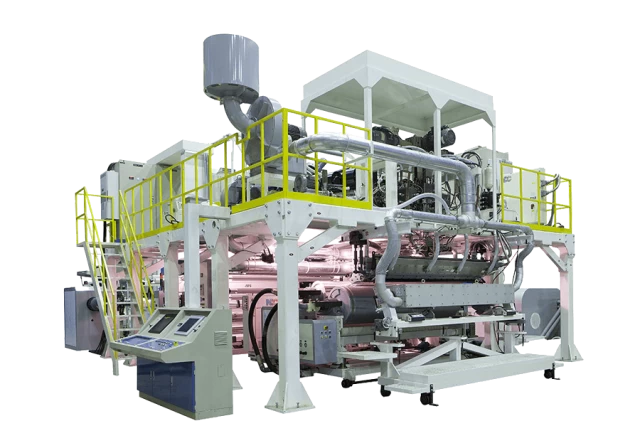

Three Layer Co-Extrusion Cast Film Line
Three Layer Co-Extrusion Cast Film Line, Three Layer Co-Extrusion Cast Film Making Machine
Specification
| Machine Model | FK/ TCF-90/125/90-2500 |
|---|---|
| Resin | PP, homo-polymer & copolymer grades |
| Film Width | 2200 mm (max.) |
| Film Thickness | 20 - 80 micron |
| Layer Structure | A layer, Co-polymer PP B layer, Homo-polymer PP C layer, Co-polymer PP |
| Line Speed | 300 M/min (Max. Mechanical design) |
| Production Output | 630 kg/hr |
| Extruder | Ø90/125/90 mm, L/D=32 |
| Main Drive | 125/250/125 HP AC motor with vector inverter control |
| 3 Layer Feedblock | 1 set, EDI brand, ex USA |
| Co-extrusion Auto T-die | 1 set, EDI brand, ex USA |
| Vacuum Air Chamber | Dual Chamber design |
| Soft Box | Angle & height adjustable |
| Take-off Unit | 300 M/min (max.) |
| Oscillating Unit | 1 set |
| Winder with 1000 mm Winding Diameter | 1 set |
| Electric Control Panel | With air conditioner |
| PLC Control System | Allen Bradley Brand |
*AII specifications, design and characteristics shown above are object to change without prior notice.
