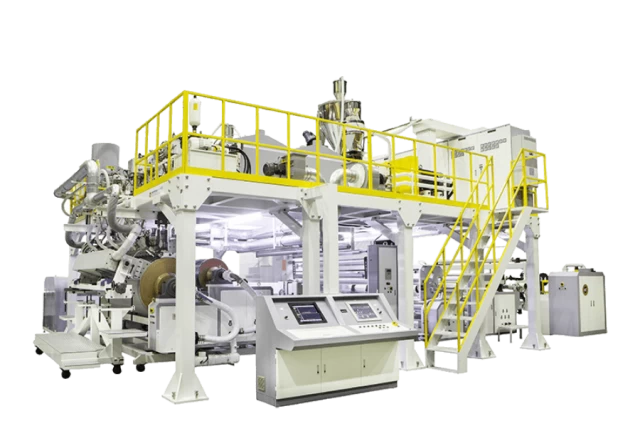

Three Layer Co-Extrusion Cast Film Line
Widely used in the packaging field, as flower wrapping, gift packing, stationery, and for flexible packaging like the lamination film used in extrusion coating or dry lamination. Or, with vacuum metallization to replace the aluminum foil for flexible packaging purposes or as decoration flim with full color print. Three layer structure as A/B/C to save the cost for those high value polymers on the sealing or lamination layer (top and bottom) and at the same time, using the low cost materials as well as the trimmed edge and waste as the middle layer.
| Machine Model | FK/TCF-90/125/90-3400 |
|---|---|
| Resin | PP |
| Film Width | 3000 mm (max.) |
| Film Thickness | 0.020~0.050 mm |
| Line Speed | 200 M/min. (max.) |
| Extruder | Ø90/125/90 mm, L/D=30 |
| Main Drive | 125/200/125 HP AC motor with vector inverter control |
| Extrusion Output | 800 kg/hr (Max.) |
| Production Output | 600 kg/hr for 0.03 mm x 3000 mm |
| Extrusion Die | 1 set, EDI, ex USA |
| Casting Unit Roller | 800mmφ x 3400mm width |
| Oscillating Unit | 1 set |
| Electric control panel | with air conditioner |
| PLC control system | programmable automatic control with color touch screen |
*AII specifications, design and characteristics shown above are object to change without prior notice.
