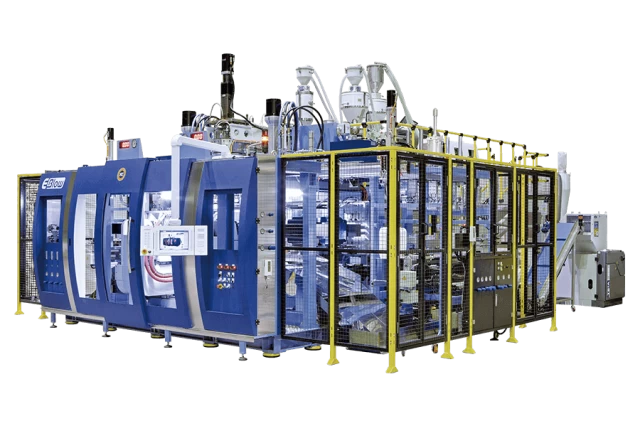

All Electric Continuous Type Blow Moulding Machine for Jerry Can
The new type All Electric mahcine presented for K2025. Single head single station design with Fixed Clamping Press to inscrease production efficiency.
In compliance to today’s global topic as environment friendly, low energy consumption, less plastic in use, low carbon footprint and compact size for limited space.
ADVANTAGE / EFFICIENCY
Compared to Hydraulic System Machine:
Feature
Specification
- Low energy consumption, less carbon footprint, no pollution, less maintenance cost 25% - 30% less energy can be saved by All Electric machine compared to traditional hydraulic one.
- Reduce, Reuse, Recycle in Plastic
- Capable to process more recycled grade or PCR in the middle layer of a 3 layer canister. 30% weight reduction can be achieved without compromising the quality from the drop test and stacking stability with an improved design on the shape. With 3 layer structure the use of master batch can be saves around 60-80%. The total saving of plastic in a year is tremendous. In addition, when less plastic being used per canister, with less heat, fast cooling cycle can increase the production rate.
- Industry 4.0 Smart Manufacturing control system All production data can be collected and recorded for analysis to improve the production control in many ways:
- Plastic consumption in virgin grade, regrind grade, master batch
- Energy consumption data in hour/month/year, Processing condition with alarm signals Preventive maintenance instructions to keep machine always at high working efficiency.
- Entire system in use is digital communication protocol to deliver accurate readings, also by Oracle MySQL with no size limitation and use Client/Server version can link to 5 users remote at same time.
| Machine Model | FK/EBFH-55/65G/55VT20SS |
|---|---|

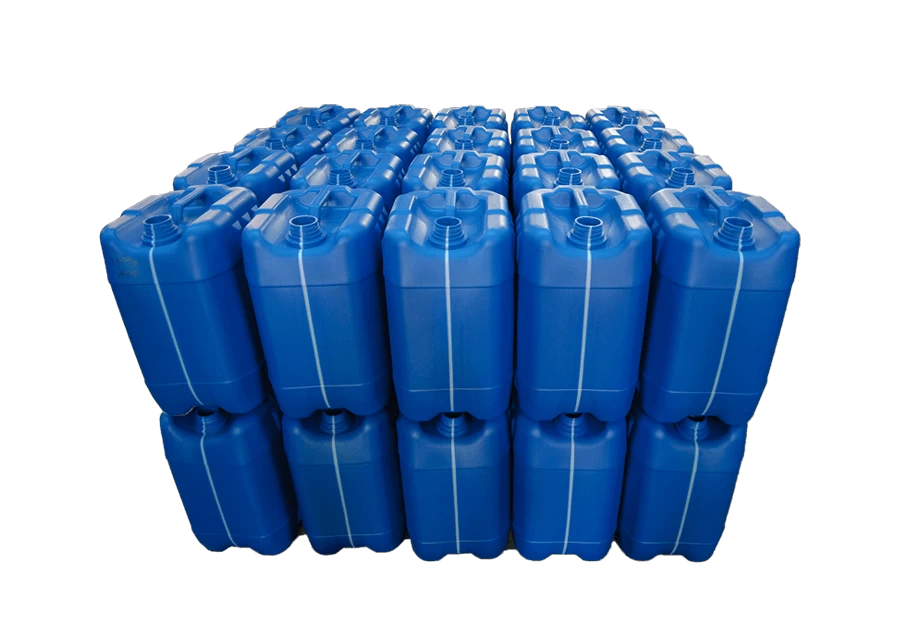

| Product | 20 lt Jerrycan |
| Production Rate | 150 bph ( @N.W : 850g ) |
| Extruder | Ø55/65/55 mm, L/D=24/30/24 |
| Driving Motor | 30/60/30 HP |
| Max. Production Output | 240 kg/hr |
| Die Head | Single Head, 3 Layer, View Strip |
| Platen Size | 680 x 540 mm (H x W) |
| Clamp Force | 25 tons (Max.) |
| Mold Thickness | 540 mm (fixed) |
*AII specifications, design and characteristics shown above are object to change without prior notice.
