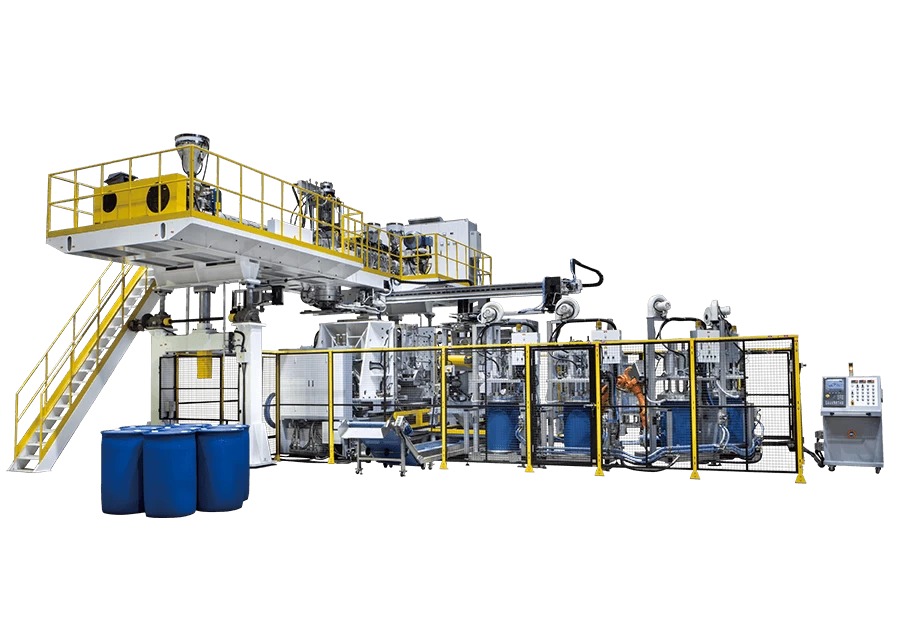

Hydraulic Continuous Type Blow Moulding Machine for L-ring (Tight Head) / Open Top Drum
Specification
| Machine Model | FK/CLBF-75G/125G/75G-LK1613SS |
|---|---|

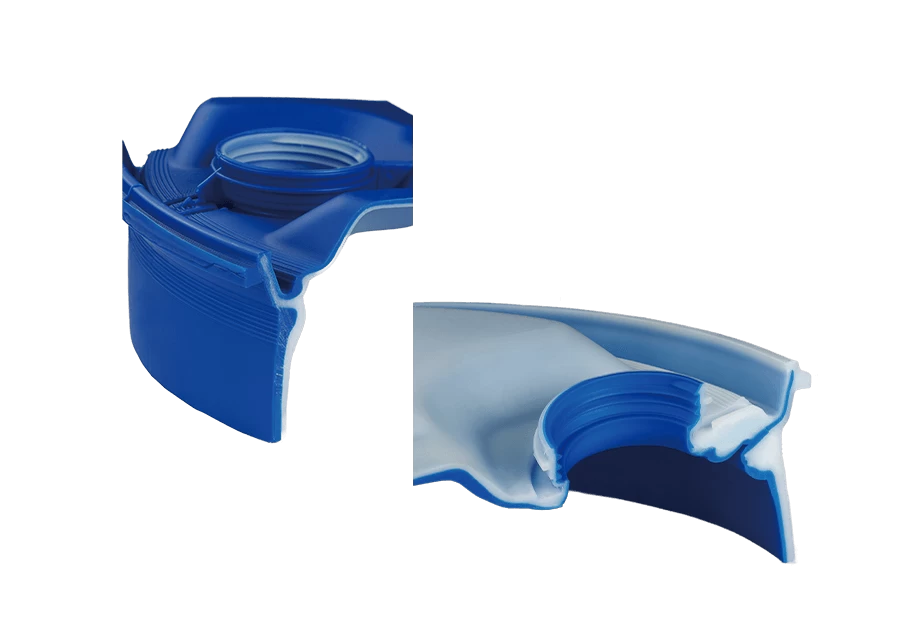

| Product | 200-250lt L-ring (Tight Head), Open Top Drum |
| Production Rate | 36-40 bph ( @N.W : 9.4 kg) |
| Extruders | Ø75/125/75 mm, L/D=30/30/30 |
| Driving Motor | 75/200/75 HP |
| Max. Extrusion Output | 650-700 kg/hr |
| Die Head | Continuous Type, 3 Layer |
| Platen Size | 1600 x 1330 mm (H x W) |
| Clamp Force | 106 tons (Max.) |
*AII specifications, design and characteristics shown above are object to change without prior notice.
