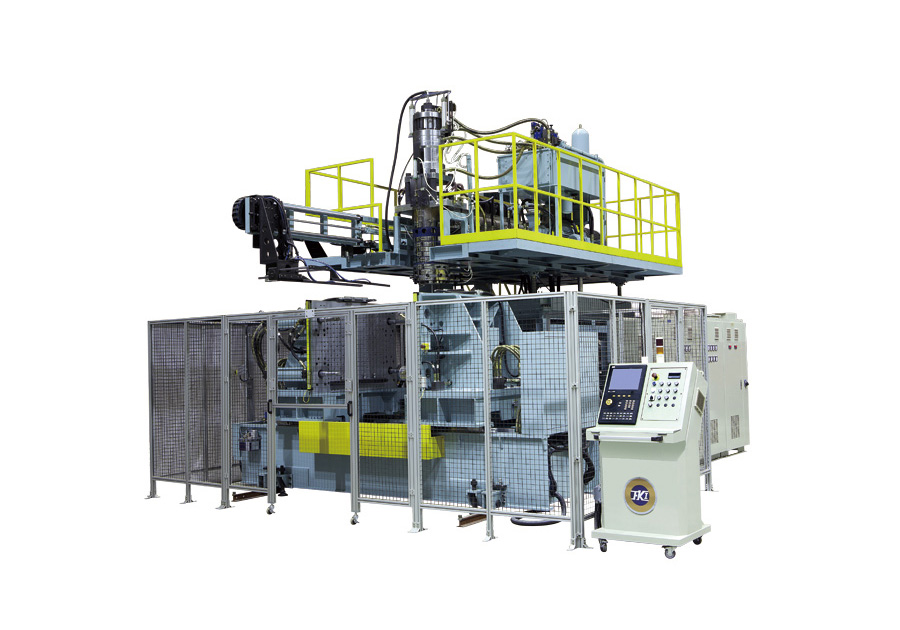

Accumulator head Blow Moulding Machine for Air Duct
Accumulator head Blow Moulding Machine for Air Duct
  • Mono Layer and Multi-layer Accumulator Head Type Blow Moulding Machine.
  • For producing 20 liter to 1000 liter volume, all kinds of jerry can, containers, air duct and industrial low moulding products.
Resin HMWHDPE (Blow moulding grade)
Products 30L/45L/60L/100L/125L Open top drum
Driving motor 125 HP AC motor with inverter control
Extruder Screw dia.100mm, L/D=30:1
Output 280 kg/hr (max.)
Head design Accumulator type, 15 liter
Die lip size φ450mm diameter (max.)
Clamping plate
( H x W )
1000mm X 980mm
Clamping force 45 tons (450 KN)
Clamping distance 400 - 1400 mm
Mould thickness 420 - 750 mm
Tonnage pressure Max. 180 kg/C㎡ (Adjustable)
Push-out unit Fully automatic
